Understanding Vim's Indenting System

Like most things in Vim, the indenting (tabs) system is complex making it extremely flexible so that it can fit any programming language or use case. However, the commands and terminology can be confusing for beginners, this post is designed to explain all the different commands and options needed to fully control and customize tab’s size, type, and look for any purpose.

To start of you should know that Vim has two different types of tabs, hard tabs and soft tabs. Hard tabs are a single <TAB> character per indent level, while soft tabs are multiple spaces per level. Hard tabs, while being only one character, can be displayed by a text editor or viewer as any size, normally 8. Different languages have different recommendations for the type and length of tab to use, so learning how to control them can sometimes be necessary to format your code properly.

creating indents

To insert a tab in Vim you can do it much like any other editor by pressing <TAB> at the start of a line while in insert mode. In insert mode you can also press <C-t> anywhere in the line to increase the lines indentation and <C-b> to decrease.

In normal mode you can also use > and < followed by a motion to increase and decrease the lines tabs as well. For example, >> will increase the tabs on the current line, >ap will increase the indentation level of the entire paragraph, <j will decrease two lines. The > and < commands also work with a selected region in visual mode, but after every indent you have to select the area again if you want to add another indent. To solve this I use the following mapping in my .vimrc to automatically reopen the visual selection for multiple levels of indents.

vnoremap > >gv
vnoremap < <gv

stylizing indents

By default vim displays hard tabs as clear white space, however you can change this with the listchars option. listchars has multiple different possible options such as eol, space, trail, etc. The option we care about for indents is tab, which takes two single character arguments: the first one being the character shown at the start of a hard tab and the second one being the character that is repeated for the rest of the tab space. See :h listchars for more.

examples

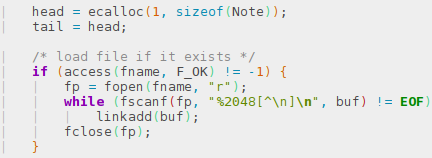

The following command sets the first character to a vertical bar | and the rest of the tab to spaces. Remember to put the space at the end after the second \ .

:set listchars=tab:\|\

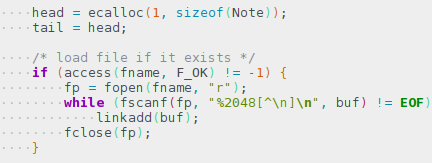

To have hard tabs look like dots you can use this:

:set listchars=tab:··

Another example:

:set listchars=tab:»-

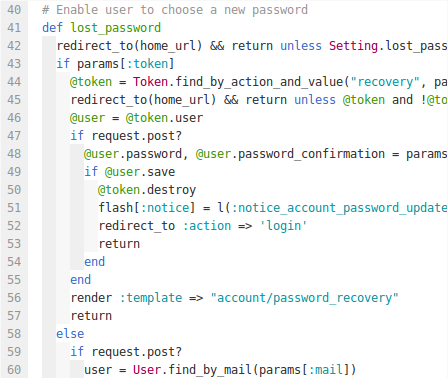

indent-guides plugin

This customization can be extending beyond what Vim offers by default with a plugin such as vim-indent-guides. indent-guides lets you color and stylize not only hard tabs, but soft ones, as well as many other features.

configuring indents

Now if you need to learn to manually change tabs settings, here is an outline of the options:

• shiftwidth sets the length that vim indents by (default 8)
• expandtab makes Vim insert soft tabs instead of hard tabs (default off)
• noexpandtab makes Vim hard tabs instead of soft ones (default: on)
• tabstop changes displayed length of hard tabs in Vim only, should almost always be equal to shiftwidth (default 8)
• softtabstop like tabstop but only for soft tabs (default 0)
• autoindent automatically indent newline to the level of the last one (default off)
• smartindent enables auto indenting based on context (eg after {) (default off)
• smarttab when on Vim inserts tabs according to shiftwidth at the beginning of the line, whereas tabstop and softtabstop are used elsewhere.

For more info run :help 'OPTION' in Vim, where OPTION is any option from above.

examples

Small hard tabs (html):

:set noexpandtab
:set shiftwidth=2
:set softtabstop=2

Soft tabs (python):

:set expandtab
:set shiftwidth=4
:set softtabstop=4

Normal hard tabs (C):

:set noexpandtab
:set shiftwidth=8
:set tabstop=8

To automatically change the options for indents per file type you could put lines such as these in your .vimrc file:

autocmd FileType html setlocal shiftwidth=2 tabstop=2
autocmd FileType python setlocal expandtab shiftwidth=4 softtabstop=4
autocmd FileType c setlocal noexpandtab shiftwidth=8 softtabstop=8

polyglot plugin

Unless you want to add a new line to your .vimrc every time you want to edit a new type of file, I would recommend installing the Vim plugin vim-polyglot. Not only does this plugin provide syntax highlighting for hundreds of languages but it also provides default indentation settings for each as well. While these defaults are useful, it can also be necessary to manually control each setting. For example if you want to change the defaults to your own preference or if a file is already formatted a specific way polyglot will not change it, so you will have to.
